Who needs an emergency PCI?

Activate the Lab for unambiguous STEMI (only clear STEMIs have a 90 minute CMS mandate). Get Cardiology or Interventional Consultation for more complicated cases: difficult ECGs, subtle ST elevation, ST depression with ongoing symptoms, STEMI “Equivalents”. This requires a systematic approach, with buy-in from Cardiology that they will respond immediately to such requests for help. What do they get out of it? Fewer false positive activations and more activations for the subtle cases that need it.

Know that the ACC/AHA guidelines for NonSTEMI recommend < 2 hour cath for:

• • 1. Refractory ischemia
    2. Ischemia with hemodynamic or electrical instability

Proviso: Many non-interventional cardiologists do not understand these subtle ECG findings or pseudo-STEMI patterns. You must be a strong advocate! If you are worried, get serial ECGs, compare with an old ECG, and get a high quality contrast echocardiogram exam. Persistent occlusion of a significant epicardial coronary artery will nearly always have a wall motion abnormality if the echo quality is good, is done with contrast, and is read by an expert.

I. ACC/AHA Criteria

ST-elevation at the J point in 2 contiguous leads that reaches the following thresholds: [cite source='doi']10.1161/CIR.0b013e3182742c84[/cite]

• • • Men < 40 years of age: 2.5 mm in V2-V3 and 1 mm in all other leads
    • Men > 40 years of age: 2 mm in V2-V3 and 1 mm in all other leads
    • Women: 1.5 mm in V2-V3 and 1 mm in all other leads

These criteria are only 45% sensitive for MI as measured by CK-MB, and about 70% sensitive for acute coronary occlusion, with perhaps 85% specificity. Beware of early repolarization, LVH, and LV aneurysm as false positives. Beware of subtle ST elevation as false negatives. Other less specific but more sensitive criteria require “new” ST elevation.

II. New Left Bundle Branch Block

New LBBB alone is not an indication for cath lab activation. MI may also present in the context of old LBBB. Therefore, in stable patients, determine if there is a concordant ST segment, or an excessively discordant ST segment (see figure) and then use the algorithm below:

Activate if any of these three: [cite source='pubmed']24016487[/cite]

• • 1. In an unstable patient (hypotensive, Acute Pulmonary Edema, electrical instability, or looks sick) [cite source='pubmed']22766335[/cite]
    2. Sgarbossa Criteria (1 of the following) [cite source='pubmed']8559200[/cite] & [cite source='pubmed']22939607[/cite]
       • Concordant ST-segment elevation of 1 mm in at least 1 lead
       • Concordant ST-segment depression of at least 1 mm in leads V1 to V3
       • Note: I reduce these two to simply: Concordant ST-Segment Deviation

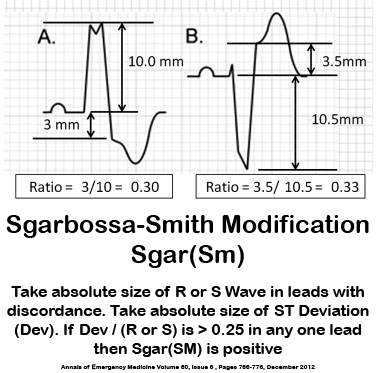

    3. They have Smith-Modified Sgarbossa criteria [cite source='pubmed']22939607[/cite] Any single lead with at least 1 mm of discordant ST elevation that is >= 25% of the preceding S-wave. This does not apply to extreme tachycardia, pulmonary edema, hypertension, as they may have falsely elevated ST segment, although such ill patients should have a low threshold for cath lab activation anyway. Stabilize patient before assessing the ECG, if possible.

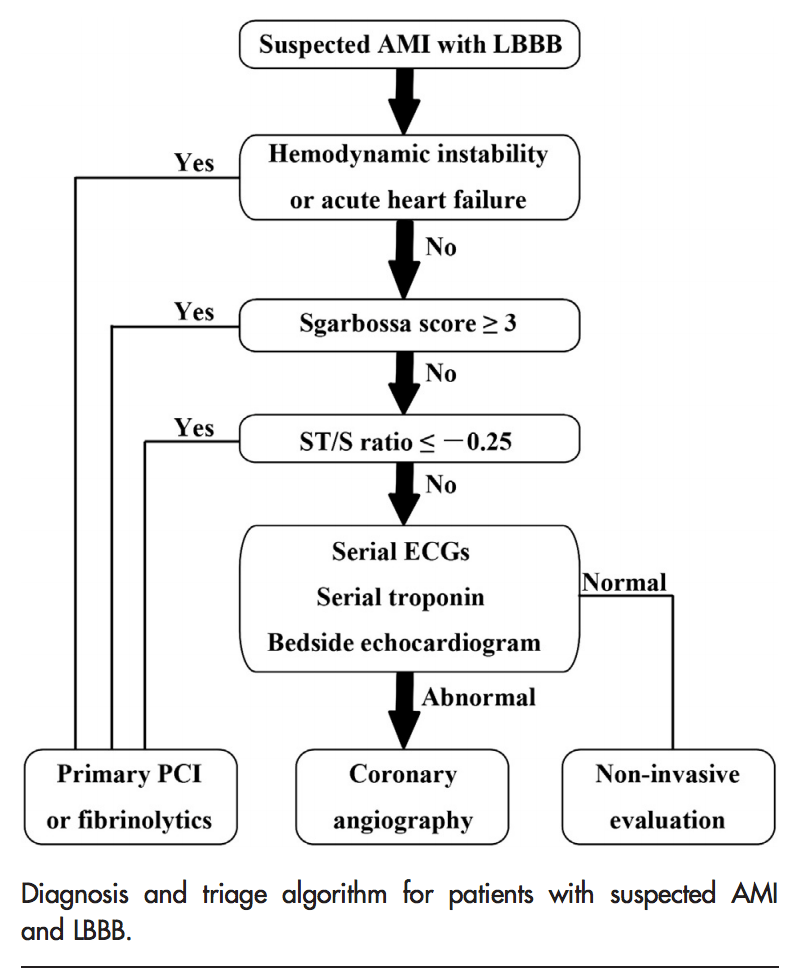

Here is a nifty algorithm from Cai and Sgarbossa

Addendum: Validation study of the Smith-Modifeied Sgarbossa (American Heart Journal (Volume 170, Issue 6, December 2015, Pages 1255–1264)

III. New Right Bundle Branch Block + LAFB

New RBBB + LAFB is a very bad sign.  It is highly associated with proximal LAD occlusion and bad outcomes.

See this paper by Widimsky et al.¹, which shows the high association of RBBB, especially with LAFB, with LAD occlusion.  Furthermore, among 35 patients with acute left main coronary artery occlusion, 9 presented with RBBB (mostly with fasicular block) on the admission ECG. If there is STEMI, there will be pathological ST elevation, but it may be downsloping and very difficult to discern, and can only be done with accurate identification of the end of the QRS.

Tips for existing RBBB OMI

In RBBB, the ST segment that comes after a large R'-wave in V1-V3 should have slight ST depression (in other words, the ST segment should be discordant to the R'-wave, similar to discordance in LBBB). RBBB generally has zero ST elevation anywhere, although there are occasional cases in which a small amount is present without pathology. If you see STE in RBBB, you should suspect acute MI.

• 1. Most patients with a right bundle branch block have ST-depressions and T-wave inversions in leads V1-V3.
• 2. Any actual ST-elevation is unusual and should alert the interpreter to the possibility of left anterior descending artery occlusion.

[Ann Emerg Med 2023;82(2):219]

Tips for Identifying LAFB

Dirty-Down in all of the inferior leads, up in aVL

• Left axis deviation of at least -45 degrees.
• The presence of a qR complex in lead I and a rS complex in lead III.
• Usually a rS complex in lead II and III (sometimes aVF as well)

See:

• • • http://hqmeded-ecg.blogspot.com/2014/11/chest-pain-and-right-bundle-branch-block.html
    • http://hqmeded-ecg.blogspot.com/2010/11/wide-complex-tachycardia-its-really.html

IV. Inferior Wall MI

Elevation of any degree in two contiguous leads (II, III, or aVF) with any amount of ST segment depression in aVL is highly suspicious for inferior MI. If there are well developed QS-waves, it is likely to be old MI with persistent ST elevation. LV aneurysm, LVH, WPW, and LBBB all have repolarization abnormalities that produce reciprocal ST depression in aVL. If these are not present, ST depression in aVL is highly sensitive and specific for acute inferior MI.

See:

• • • It's not Pericarditis
    • Subtle Inferior Wall MI
    • The Subtlest of Inferior Wall MIs

Update:

ST depression in lead aVL differentiates inferior ST-elevation myocardial infarction from pericarditis

A few highlights:

1. Any ST depression (it might be as little as 0.25 mm, so be careful!) in aVL was extremely sensitive for any coronary occlusion that resulted in inferior infarction.  Of 426 inferior MI due to complete coronary occlusion, 418 (98%) had an obvious inferior MI and/or had some ST depression in lead aVL.
2. Even when there was ST elevation in V5 and V6 (35 cases), there was some ST depression in lead aVL in all 35 cases!
3. No pericarditis case had any ST depression in lead aVL (100% specificity, CI 91-100%) .
4. We did not compare inferior early repolarization (as defined as benign inferior ST elevation). Some inferior early repol may have some ST depression in lead aVL, but I believe that this is very uncommon.  I have been unable to find a consecutive cohort of proven benign inferior ST elevation to formally study.
5. ST depression in aVL was more accurate than STE in lead III greater than STE in lead II.    88% of inferior STEMI had STE in III greater than II, but 12% did not.

IVa. Aslanger Pattern

• A new electrocardiographic pattern indicating inferior myocardial infarction
• 1) Inferior STE isolated to lead III
  2) Concomitant ST depression in any of V4-V6, with a positive/terminally positive T-wave
  3) ST segment in V1 > V2
  from LitFL

Think of RV MI in any inferior MI, especially if it is due to an RCA occlusion (any ST depression in lead I is fairly sensitive and specific for RCA as the infarct artery). If the RCA is the infarct artery, consider RV MI especially if there is hypotension. It often shows as ST elevation in lead V1, and a right-sided ECG with ST elevation in right-sided leads, especially V4R, is diagnostic.

Look for any ST elevation in V1: this is fairly sensitive and specific for RV STEMI. Sensitivity is greatly reduced if there is ST depression in V2 and V3 (posterior STEMI), which attenuates the ST elevation which would otherwise show in V1

Consider adding leads V3R & V4R (5^th intercostal space, mirror image of lead V4)

Suggested cut point, though very dependent on proportion (R-wave amplitude): Elevation of 0.5 mm in V3R/V4R

Myth:  When presenting with Inferior MI – Disproportionate ST segment elevation with greater ST elevation in lead III than in lead II is pathognomonic for an RVMI.[7] This is completely false.  This finding is sensitive, but not at all specific and not at all pathognomonic. STE in III greater than II suggests RCA over circumflex (by no means absolute).  All RV MI come from RCA occlusion, but only from RCA occlusion proximal to the RV marginal branch and ONLY if the RV is not also supplied by the LAD, which it often is.  Thus, STE in III > II says nothing about RV MI except that the RCA is involved.  Proximal RCA occlusion does not imply RV MI physiology by itself.  A minority of proximal RCA occlusions have RV MI physiology.

Take home: RV MI usually has ST elevation in V1 UNLESS there is concomitant ST depression in V2 (posterior MI which attenuates the STE in V1).

VI. Posterior MI (isolated)

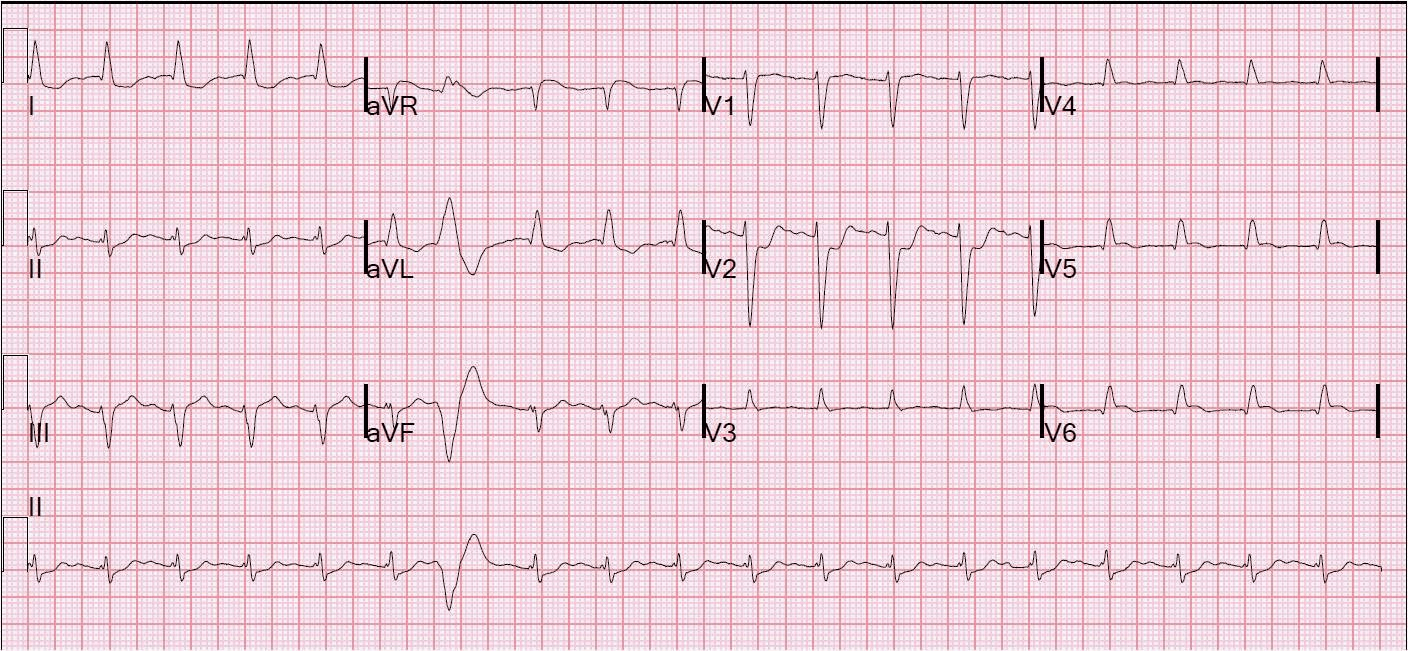

Precordial ST-depression >= 1 mm, maximal in leads V1-V4. Appearance of tall R-waves in V1-V2 may be delayed.[8] Elevations of 0.5 mm or more in V8 and/or V9 add specificity, but may not be sensitive. See standard leads (1st ECG) and with posterior leads (2nd ECG)–note how the ST depression is profound, but the ST elevation on posterior leads is minimal. When the standard 12-lead is diagnostic, posterior leads may just confuse the issue by appearing to be negative (falsely)

See also this Smith Post

with these take-homes:

VII. High Lateral Wall MI

• • • Any degree of ST elevation in aVL with ST depressions in lead III (with or without II and aVF
    • ST depression in II, III, aVF does NOT signify “inferior ischemia.” It is usually a reciprocal manifestation of ST elevation in aVL, which may be very subtle. High lateral MI is often best seen by the reciprocal ST depression in leads ii, III, aVF.

VIII. Left Ventricular Hypertrophy

• • • When there is very high voltage in V1-V4, Anterior STEMI is very unusual, but not impossible
    • Beware any concordant ST elevation. With LVH, the ST elevation is discordant to the deep S-wave in V1-V3 and the ST depression is discordant to a high voltage R-wave in V5, V6. V4 is variable in positivity.
    • Look for changes from previous ECG.
    • In those leads with problematic ST Elevation, if there is high voltage, then assess the ratio. I think 25% [cite source='pubmed']22738872[/cite] is far too much, too insensitive especially for LAD occlusion. These problematic cases usually have at least one S-wave with a 30 mm amplitude. One rarely sees the ST elevation (at the J-point, relative to the PQ jct.) greater than 4 mm, for a ratio of 14%. If Steve must choose a ratio for these leads, he would choose 17%, or 1:6 ratio. Armstrong et al.'s 25% would require 8 mm of STE in such a case!

Here is the explanation: http://hqmeded-ecg.blogspot.com/2012/09/male-in-his-40s-with-chest-pressure-what.html

New LVH Criteria

Part I of the podcast ended here. See Part II for the rest of the audio

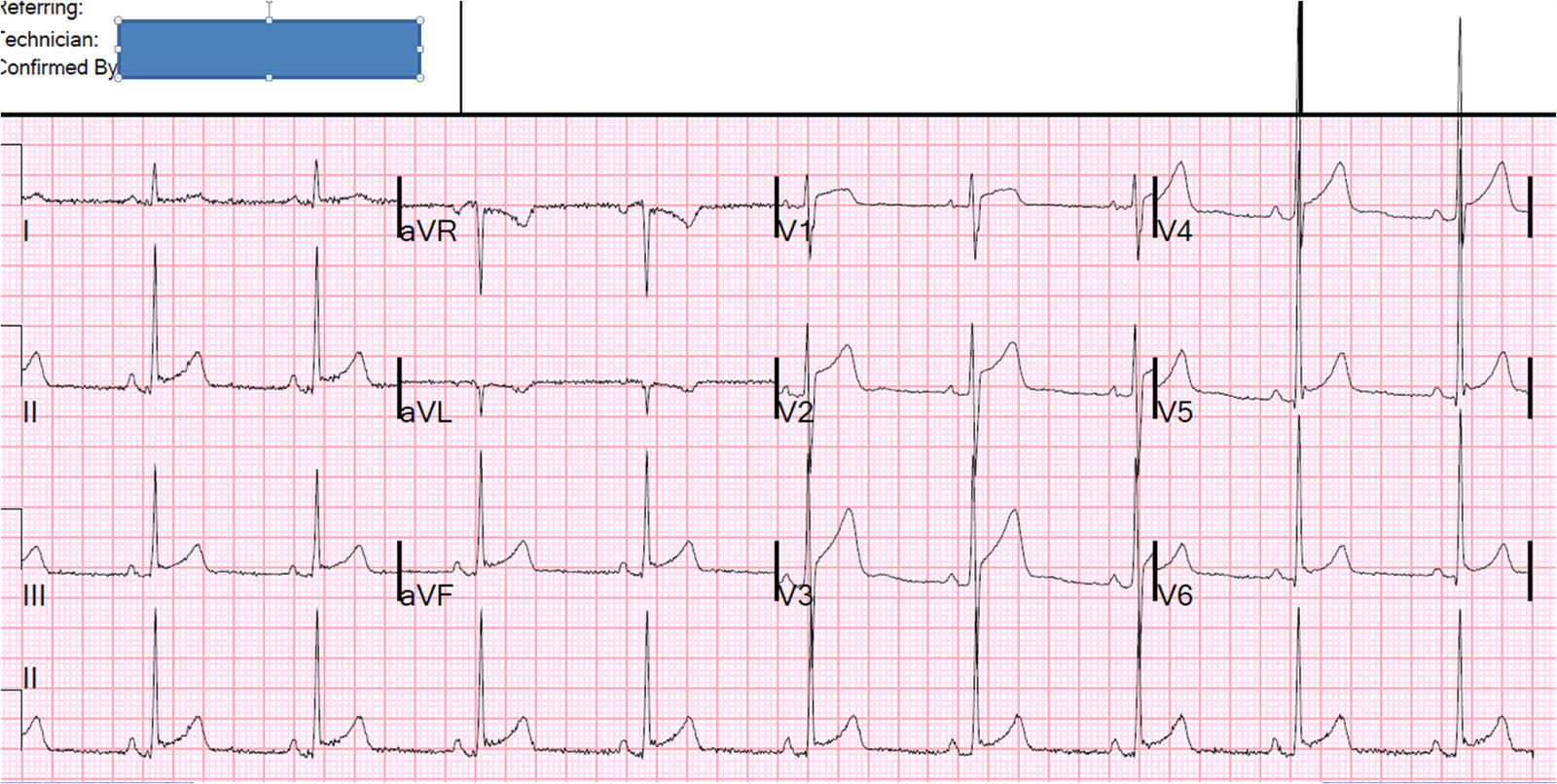

IX. LAD Occlusion vs. Anterior Early Repolarization (Normal Variant ST Elevation in Precordial leads)

It is critical to use it only when the differential diagnosis is subtle LAD occlusion vs. anterior early repol. Thus, there must be ST Elevation of at least 1 mm. If there is LVH, it may not apply. If there are features that make LAD occlusion obvious (inferior or anterior ST depression, convexity, terminal QRS distortion, Q-waves), then the equation MAY NOT apply. These kinds of cases were excluded from the study as obvious anterior STEMI. [cite source='pubmed']22520989[/cite]

• • • (1.196 x STE at 60 ms after the J-point in V3 in mm) + (0.059 x computerized QTc) – (0.326 x R-wave Amplitude in V4 in mm). QTc is the computer measurement.
    • RAV4 = R-wave amplitude, in mm, in lead V4.
    • ST elevation (STE) is measured at 60 milliseconds after the J-point, relative to the PR segment, in millimeters.

A value greater than 23.4 is quite sensitive and specific for LAD occlusion (sensitivity 86%, specificity 91%. At a cutoff of 22.0, the sensitivity is 96% with a specificity of 81%)

Use the Calculator at Steve's Blog. See applet down right side of blog, or get the free iPHONE app called subtleSTEMI.

• • • There are many examples of its use on the blog.
    • Here is one particularly good example

New Aslanger Simplication

Terminal QRS distortion is present in anterior myocardial infarction but absent in early repolarization.

Terminal QRS distortion (TQRSD), defined by the absence of both an S wave and J wave in either of leads V₂ or V₃, is often present in anterior ST-segment elevation myocardial infarction

To state it a different way, No S and No J points to AMI rather than early repol.

X. de Winter ST/T-wave complex (a form of hyperacute T-wave with depressed ST takeoff)

• • • ST depression >1 mm up-sloping at the J-point in leads V1-V6[8]
    • Tall T waves and up-sloping ST depression do not necessarily evolve into ST elevation. Precordial T waves are tall, upright, symmetric
    • Normal QRS duration
    • Associated with extremely tight acute thrombotic LAD stenosis/subtotal occlusion or occlusion with minimal collateral flow.
    • Here are many examples of de Winter

XI. Hyper-acute T-waves (HATW) (Large T waves–large in proportion to the QRS!)

• • • Generally prudent to perform serial ECGs, because true HATW generally morph quickly into a classic STEMI pattern[8] or resolve quickly if they are “on the way down” after spontaneous reperfusion
    • Hyperkalemia is another common cause of tall T waves. If in doubt, measure the K!
    • Here are some examples of Hyperacute T-waves and here
    • Each of these features corresponds with the overall T-wave “inflation” and increased AUC in T-waves of occlusion myocardial infarction [10.1016/j.annemergmed.2023.01.011]. T wave inflation makes the T-waves tall, wide, and abnormally symmetrical

XII. Elevation in aVR with diffuse ST Depressions

Usually indicates left-main or LAD insufficiency (not necessarily occlusion, as so many of us have thought). aVR elevation with ST depressions in a patient whose pain is controlled by medical management and whose ST deviation largely resolves, and is hemodynamically and electrically stable, can be managed medically with extremely vigilant observation, continuous 12-lead ECG monitoring, and next day Cath.

The new 2013 ACC/AHA guidelines give this as an indication for thrombolytic therapy. This is the first time they have recognized that the studies prohibiting thrombolytics for ST depression did not include this high risk group.

• • • See: aVR Left Main Occlusion vs. Insufficiency

Update:

Rick Body EMJ Best Bets review: ST elevation in aVR when found alongside widespread ST depression can identify high-risk patients with LMCA stenosis for early intensive investigation, particularly . It has insufficient utility to identify patients who require immediate revascularisation.  (EMJ 2015;

XIII. STEMI vs. Left Ventricular Aneurysm (old MI with Persistent ST elevation)

They are differentiated based on the T-wave amplitude (specifically T/QRS ratio), and the principle that an acute MI, in contrast to an old or subacute MI, has large upright T-waves. We have both derived and validated this rule. Suspect it when there are QS-waves in V2 and V3.

If there is one lead of V1-V4 with a ratio of positive T-wave amplitude to total QRS amplitude (T/QRS ratio) that is > 0.36, it is highly likely to be acute MI. If < 0.36, it is highly likely to be LV aneurysm. Subacute MI (chest pain duration > 6 hours) is a possible false negative.

• • • see: http://hqmeded-ecg.blogspot.com/2009/08/persistent-st-elevation-after-previous.html

Inferior aneurysm is much more difficult to diagnose, as acute inferior MI can have Q-waves that mimic aneurysm.  Assume it is acute unless historical or echo data prove otherwise.

XIV. What if it looks like a STEMI, but there are Q-waves?

Q-waves may appear within the 1^st hour of pain onset. If the patient still has chest pain, they should go to the lab.

• • • See: http://hqmeded-ecg.blogspot.com/2014/08/9-hours-of-chest-pain-and-deep-q-waves.html

Update:

And time should not stop you either

XV. Shark Fin (not discussed in the podcast)

Massive ST elevations begins to look like a different pattern than standard STEMI–You must know the sharkfin!!!

Shark Sighting in an Electrocardiogram. JAMA Intern Med. 2022 Dec 12. doi: 10.1001/jamainternmed.2022.5061. Epub ahead of print.

XVI. Unrelieved Pain with NSTEMI

“The False STEMI/NonSTEMI dichotomy”

ST depressions or positive troponin, or clinical diagnosis of angina with ongoing symptoms not relieved by medical management

• • • STEMI: unequivocal, needs emergent reperfusion
    • Non-STEMI: Does not need reperfusion until 24-36 hours, right?

Wrong!  There are Non-STEMIs that need the cath lab now.  The dichotomy is false.

ACC recognizes this in their recommendations, but they are buried in there:

Patients with objective evidence of ischemia (high risk like h/o CAD with typical pain, or ischemic ECG, subtle ST elevation, or + trop) and persistent ischemia (usually persistent pain, but also persistent ischemia on the ECG) in spite of maximal medical therapy (antiplatelet, antithrombotic, IV nitro) need to go to the cath lab immediately.

Evidence?  No randomized trials, but there are 5 trials of emergent PCI for Non-STEMI.  Few know that all of them either excluded patients with persistent ischemia or showed benefit of emergent PCI. The largest trial by far, the TIMACS trial [cite source='doi']10.1056/nejmoa0807986[/cite], by Mehta et al. — they did not even state in their methods that they excluded patients with refractory ischemia.  Steve had to personally contact Dr. Mehta to find that out.  Dr. Mehta said, “He cannot imagine that any investigator would have enrolled a patient with refractory ischemia.” Early cath was also average of 14 hours.  They did find that for those who were “high risk,” as defined by GRACE score > 140, this so-called “early” cath did result in better outcomes.

Also, there are 4 studies on the condition of the infarct artery in patient with “Non-STEMI” who get their cath the next day: they all show that about 25% have an occluded artery at the time of cath 24 hours later, that they have higher biomarkers, worse LV function, and higher mortality than the “Non-STEMI” patients with an open artery.

So treatment is simple: Objective evidence of ischemia (including, but not limited to, ST depression and subtle ST elevation), and you can't control it: go to the cath lab.  Not every Non-STEMI is alike.

Steve’s shop now has an intermediate path other than the typical STEMI or Not a STEMI dichotomy that they call Pathway B.   They page the on-call cardiologist for cases that might need emergent PCI, but are not STEMI, and they emergently (within 5 minutes) help the ED doc assess whether there is need for it, especially with emergent formal contrast ultrasound.  They are very responsive, and experience has shown so many unexpectedly occluded arteries that they are now very aggressive.

XVI. Paced Rhythm

Smith-modified sgarbossa critera were accurate in paced rhythm [ doi: 10.1016/j.annemergmed.2021.03.036]

Khawaja_et_al-2021-Current_Cardiology_Reports

Update

XVI. Inferior-Posterior Massive STEMI Shark Fin

Shark Fin on Steve Smith Blog

Get a Cardiology Consult and/or Admit to Cardiology Bed where the patient can be carefully monitored

I. Wellens

This is a high risk LAD lesion that was occluded at the time of the pain but is now open. The lesion may close off at any moment and this may initially be asymptomatic. If emergent cath is not undertaken, maximal antiplatelet and antithrombotic therapy and continuous 12-lead ST segment monitoring is essential to prevent re-occlusion and to detect it if it occurs.

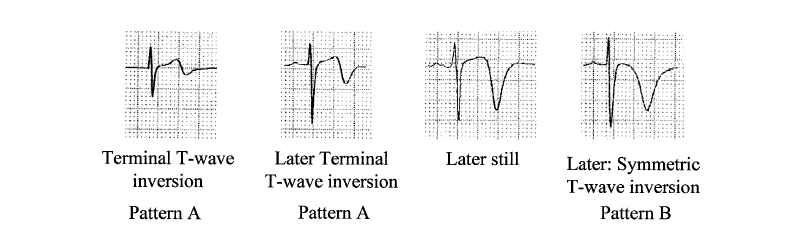

• • • Pattern A is biphasic T-wave (Up and then Down)
    • Pattern B is deeply inverted T-waves

Both should only be seen while the patient is chest pain free. Unfortunately, there are many false positives, especially in patients with LVH and hypertension. Wellens’ is a syndrome (ECG and high risk clinical presentation, and pain free)

See this post:

• • • http://hqmeded-ecg.blogspot.com/2013/11/why-we-need-12-lead-st-segment.html
    • http://hqmeded-ecg.blogspot.com/2017/12/are-these-wellens-waves.html

II. Transient STEMI

Ownbey M. et al. Prevalence and interventional outcomes of patients with resolution of ST-segment elevation between prehospital and in-hospital ECG. Prehosp Emerg Care 18(2);174-9. Apr-Jun 2014.

They found 293 total cases of prehospital STEMI, but could only find all the relevant records in 83 cases (28%). ST Resolution (STR) by the time of ED arrival occurred in 18 of 83 cases. There were no differences between STR and non-STR cases in prehospital vital signs or treatments. 95% of patients underwent cardiac catheterization with a mean door-to-needle time of 57 minutes (interquartile range 43-71). Comparing STR and non-STR cases, significant lesions (greater than or equal to 50%) were found in 94 and 97% of patients (p = 0.6), and subtotal or total lesions (greater than or equal to 95%) were found in 63% and 85% (p = 0.1), respectively.
Meisel SR, et al. Transient ST-elevation myocardial infarction: clinical course with intense medical therapy and early invasive approach, and comparison with persistent ST-elevation myocardial infarction. Am Heart J 155(5):848.

They studied 1244 consecutive STEMI patients. 63 (5%) had Transient STEMI (TSTEMI): Patients with Transient STEMI were treated with intravenous isosorbide dinitrate, aspirin, and clopidogrel, and/or with glycoprotein IIb/IIIa inhibitors. Coronary angiography performed 1.5 days after admission demonstrated no obstructive lesion or single-vessel obstructive disease in 43 patients (70%). PCI was performed in 48 patients (77%), and 8 patients (13%) were referred to surgery. Left ventricular ejection fraction was within normal limits, and peak creatine kinase was mildly elevated. Transient STEMI was associated with less myocardial damage, less extensive coronary artery disease, higher thrombolysis in myocardial infarction flow grade in culprit artery, and better cardiac function. These data suggest that immediate intense medical therapy with an early invasive approach is an appropriate therapy in patients with Transient STEMI.

New RCT showing it may be safe to wait if patients symptoms are controlled²

III. Any of the above that you or consults feel do not require emergent PCI

Additional Key Points Not Discussed

Subtle ST Elevation is STILL BAD!

• • • [cite source='pubmed']25458652[/cite]

Terminal QRS Distortion (See this Post)

There is no S-wave in V3, and neither is there a J-wave or fishhook. This loss of the S-wave is called terminal QRS distortion, and multiple studies suggest that, with an anterior MI, this predicts a larger infarct, with higher mortality, and even a worse response to fibrinolytics or PCI.

Coronary Artery Mapping from Charles Bruen

From ResusReview

Articles to Read

• • • Rokos et al. Subtle Reasons to Activate the Cath Lab
