Resuscitative Extra-Corporeal Life Support for Cardiac Arrest (ECMO)
Joe Bellezzo, MD along with his partner-in-crime, Zack Shinar, MD have started an ED ECMO service at Sharp Memorial Hospital in San Diego. I am so jealous! In this episode of the podcast, I get to talk to Joe about how it works.
Want to hear more about all things cardiac arrest and ECPR, then come to reanimateconference.com
What is ECMO?
ECMO is actually a misnomer. Extra-corporeal life support (ECLS) is probably a better term. If a catheter is placed in a major artery and a major vein (VA ECMO), the patient can be provided with full hemodynamic and respiratory support, aka cardiopulmonary bypass. If catheters are placed in two major veins (VV ECMO), the patient's respiratory status can be maintained, but without the hemodynamic augmentation. Dr. Bellezzo's shop is using VA ECMO to treat refractory cardiac arrest patients.
This is not the first attempt to use ECMO in this patient group, (see the articles in the EMCrit Hypothermia/Post-Arrest Section) but I think this is the first ED physician initiated service.

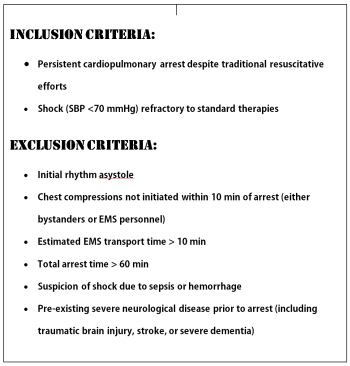

Which patients are they crashing on to ECMO?
What are the stages to placing a patient on ECMO?
Stage I-get catheters into a femoral artery and femoral vein

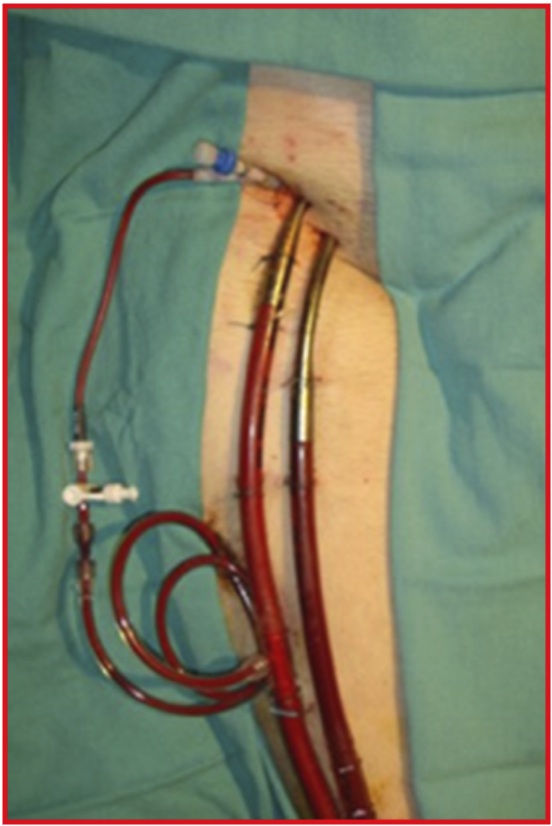

Stage II-exchange these catheters for the enormous ECMO catheters vias guidewire and serial dilations
Stage III-attach them to the ECMO machine, which is run by specially trained ICU nurses for the first 45-60 minutes and then by a perfusionist.
Dr. Bellezzo was kind enough to let me post this video
If you have any questions, place them in the comments and anything I can't answer, I'll forward to Dr. Bellezzo
Update:
Additional New Information
More on EMCrit
EMCrit 204 – The Nurse-Led Code with Joe Bellezzo(Opens in a new browser tab)
Additional Resources
You Need an EMCrit Membership to see this content. Login here if you already have one.
Professor
Nassau University Medical Center
No conflicts of interest (coi).
- EMCrit Wee (392.5) – Naughty or Nice? Bad Behavior in Healthcare with Liz Crowe, PhD - January 15, 2025
- EMCrit 392 – All Things Defibrillation with Sheldon Cheskes - January 10, 2025
- EMCrit 391 – Pericardiocentesis and Tamponade Temporization - December 27, 2024
I’m very interested in how this plays out with EMS transport of cardiac arrest victims. Many areas have finally reached the point where they’ve stopped treating cardiac arrests as “load and go” and their survival to discharge numbers are getting better. I wonder how you’d orchestrate the movement and transport safely (while maintaining the CPP everybody was working hard on) without something like mechanical CPR support. Do the EMS agencies in Dr. Bellezo’s service area use mechanical CPR devices on cardiac arrest transports? Some of the papers on ECLS out of France and Japan are pretty interesting too. I wonder… Read more »
Christopher, these are great thoughts and we discuss these exact issues every time we the topic of “who to transport” comes up. Our EMS community does not use mechanical CPR machines. So its a tough question. As yet we have no county protocol to make these decisions but they are on the horizon. I do think that mechanical CPR devices will be the key to effective transport of these patients.
Isn’t part of the point of CPP to keep continues compressions going and get to the hospital as fast as possible? I think the idea needs to be load and go. Place a LMA, IO and start the drugs and get to the ED where you have more help. Maybe the new thing is to have a Code team respond to the ED for assistance on patients with a possibility of survival with criteria of activating the team like the one above. The idea of load and go needs to be pushed as well as the usage of air ambulances.… Read more »
You really can’t perform the same quality of compressions in a moving ambulance like you can on scene. Nor do you have nearly the same amount of room to work (excluding situations where you’re working them in bathrooms, etc). My biggest concern, however, is moving the patient from the scene to the truck can sometimes take more than a few minutes. The first 10 minutes are vital for the patient and the quality of resus care early likely dictates their survival to discharge. My last code took 4 minutes to get from the house to the truck, but we’d achieved… Read more »
As Chrisotpher alludes to, many leading services have moved to full on-scene resus. FDNY has everything I have in the ED including hypothermia. ECMO is the first reason I could give for why shorter scene times may be superior. Fletch may be right, the ideal solution may be sending a doc with ECMO set-up to the scene.
I agree with Christopher in regards to the logistical difficulties in transporting these pts quickly to hospital without mechanical CPR. Here in Melbourne, we perform full resus on scene including hypothermia and are currently trialling therapeutic cooling during CPR as opposed to post ROSC. We consistently have ~60% survival to hospital and ~30% survival to discharge for pts presenting in shockable rhythms. Outside the paediatric population, CPR to hospital very rarely occurs here due to the inability to perform effective CPR as well as the inherent danger to the paramedics inside. Ideally, getting a doc out with ECMO setup would… Read more »
Awesome stuff- this will probably be the next frontier in emergency medicine. This could change out of hospital arrest back to a load and go situation unless we can find logistical ways of bringing ECMO to patients in the field as others have mentioned. One question I have- what is the rate of line infection and sepsis in these patients who have these harpoon sized catheters placed in a crash situation? I am encouraged by the fact that the centers who offer this are carefully selecting their patients. The one pitfall I can see with this technology is that we… Read more »
Resuscitation Center Model??? Now that we have the ability to do ED ECMO in the US, we are considering the options – in terms of managing the out of hospital arrest. After much discussion on this topic, its unlikely that it will be possible to establish a model where an ‘on call ECMO doctor’ would be able to go to the scene and initiate ECMO in the field. While the technology is there (LifeBridge and Maquet have self-contained self-priming ECMO machines now), this model won’t likely survive in the US – primarily due to financial issues. But what about the… Read more »
The fact that we have a specific STEMI Receiving Center is nice for the patient, but is only part of the reason it works. I think an integral part of my area’s STEMI system is the prompt and actionable feedback given on each case to everyone involved; whether it was a field activation coming in by EMS or an inter-facility transfer. They’re able to provide useful feedback because the data (my ECG) is provided with the patient. Where a Resuscitation Center would shine would be prompt and actionable feedback for the EMS crews, using data downloaded from their monitors. If… Read more »
Good day Dr. Bellezo. For at least 4 years I have been involved in the development of ECMOJet, Or ECMO Flight…with real ECMO temas with CCP, Neonatologist or surgeon, RN and all the necessary support, that will allow us to in many instances, go to the patient, cannulate and transfer already on ECMO. The technology is here and we are precisely looking for a center like yours to offer our support. We are in the process of redesigning our medical interior to make it sufficient for all the necessary equipment. We have been primarily looking to serve the neonatal population… Read more »
Very interesting concept. Does the ECMO lines interfere with cardiac catheters used for PCI in STEMI patients?
Soren, while the cardiologists indeed also typically use the femoral artery for access, the arterial ECMO cannula only extends up to the renal vessels and is typically a smaller caliber cannula than the venous line (the venous flow is the rate-defining catheter and therefore needs to be larger), so both can be present. In fact, we sometimes also insert an IABP into the aorta as well, also through the femoral artery…yes, three big lines in the aorta! In an ideal ED ECMO case, both venous and arterial ECMO catheters are placed on the same side, giving the cardiologist a clean… Read more »
This is awesome. I think i recognize that man in the video.
Sharp ER docs are brilliant!
Joe, (Call me Jim), I have placed cannulas this large in the right internal jugular vein for veno-veno bypass (liver transplantation), and I cannot emphasize how important it was to use ultrasound for vessel location, initial wire insertion, etc… Most certainly you are using ultrasound during femoral cannulation? What you are doing is the logical trajectory of our technology. I have a “loaner” LUCAS2 in my training lab, and am running simulation scenarios involving its use with continuous ventilation using the Oxylator. There are case reports of LUCAS2 use during PCI with good results, so I am networking with my… Read more »
Jim, great questions. Here are my thoughts: 1. Ultrasound guidance: I totally agree. In fact, once the heart stops beating (VFIB) the femoral vein becomes huge in comparison to the artery. We sometimes find that we need to approach the artery at an angle because the vein starts to obstruct direct access to the artery. Ultrasound is the only way to accomplish this. Limited sticks in these vessels is crucial. So trying this ‘blind’ (without US) is not recommended. As an aside, we recently had a firefighter with asthma who crashed despite being intubated and all the usual meds. She… Read more »
I realize that for many followers of Scott’s amazing podcast ED ECMO simply isn’t an option – you just don’t have a mobile ECMO program at your facility. However, if you do find that your hospital supports an in-house ECMO program, and you are interested in mobilizing it to your ED, I would be more than happy to help you sort out the details. We’ve spent the last 1.5 years optimizing our ED ECMO program, improving fast access to the vessels, and protocolized the whole thing. I would be happy to share with any of you. As Scott mentioned in… Read more »
Hi Joe Great discussion. ECMO for air ambulance is in its infancy still. I know of one long distance ECMO retrieval from Vanuatu to Sydney last year. At that presentation at an aeromedical meeting, the retrieval team said it required a perfusionist, cardiac surgeon, anaesthetist and another retrieval doctor. In your suggested concept of a field EMS physician going out to start ECMO, is it with only one doctor, or do you mean to go out with a trained nurse/perfusionist as well? I am impressed you have perfected USS guided arterial line placement during CPR! Was it a steep learning… Read more »
Minh, So sorry I missed your question! I was reviewing some ECMO stuff and re-reading the comments here and realized I never responded to your questions. I look at your questions of ‘field ECMO’ as having two components that need to be addressed. The first is line placement. You can easily do it! Its quite simple and can be done blind (without US) in the field. I would add that you should attempt the arterial access if and when any pulse is available. once the pulse is lost…the artery is tough to grab! But the catheters are nothing more than… Read more »
amazing comments, Joe. Folks Joe wrote an issue for EM Critical Care Journal on the topic, coming soon. His paper has just been published in Resuscitation as well.
Hey Joe
thanks for the eventual response. You have been busy! Its quite coincidental too as about a week ago I got notice that our service is looking to fit our aircraft out to carry ECMO devices..not sure which ones yet. The paediatric retrieval teams from Brisbane are trialling an ECMO retrieval model. I know of a few cases in the last year that would have benefited from ECMO retrieval so I encourage the work and research that you are doing!
Minh, you may want to take a look at the Maquet Cardiohelp (I have no affiliation!). We just met with them tonight and the unit looks very promising. Small, self-priming, self-adjusting, portable, and can be initiated by the same practitioner who places the lines. We are putting together a study in our ED using the unit. If that flies, then we may be looking at doing our own field-ECMO trial…eventually! Good luck and please keep me in the loop on this stuff. Please feel free to email me directly at emergency.md@gmail.com as well.
Has ECMO ever been used for the ARDS presentation of patients with fulminant influenza? With Novel H1N1 and H5N1 the patients are often younger, healthy with no co-morbidity, seemingly good candidates for ECMO.
Yes. ECMO has been used on these patients. Great candidates. Of course, these patients are already intubated…on pressors…and still circling the drain. ECMO is life saving for these folks too. You may have to decide between a VV ECMO solution (only oxygenation support) or VA ECMO (O2 and blood pressure support). For VV ECMO we have single catheters with dual ports that are usually placed in the IJ – ports in the upper SVC and lower IVC are taking blood from the patient and into the ECMO circuit…oxygenating the blood and returning the blood to a port that is ideally… Read more »
You’ll find an interesting paper about ECMO-use during a flu-epidemic here:
http://www.ncbi.nlm.nih.gov/pubmed/21465083
(10 patients overall)
At the Department of Emergency Medicine at the Vienna General Hospital (Austria/Europe) ECMOs are being used for resuscitation at the ED at least since 1998, supposedly even longer.
Thanks for the article and the tip on Vienna General, Steve.
Very interesting indeed. What kind of overall survival rates are you seeing? What percentage of stroke or bleeding complications do you see? Also, what is the average length of ECMO support?
Unrelated to ecmo in resus situations, but are any of you aware of any cases of ecmo being used as a bridge to lung transplantation in patients with severe interstitial lung disease such as idiopathic pulmonary fibrosis, if mechanical ventilation is ineffective?
I have found several papers describing that it is possible to use ecmo as a bridge to LTx, any thoughts on this if the patient is otherwise healthy other than the respiratory failure caused by the IPF?
absolutely, done in many MICUs
Are there any training options available in the U. S. for non-surgeon ED docs to obtain training in resuscitative ECMO?
We have a secialized ECMO training tema in Caifornia if interested.
Manny
Concerning ALS-protocol once the decision is made to go for ECMO ?
Continuous CPR without checking pulse (unless signs of live ) ?
What with defibrillation?
How about adrenaline?
Kind regards
Griet Vermeulen MD
do it all normal style. if you get ROSC, they may avoid the pump (though many will still need it b/c of post-ROSC recode)
